HD – LC Function-2 way Cartridge Valve For Directional Control

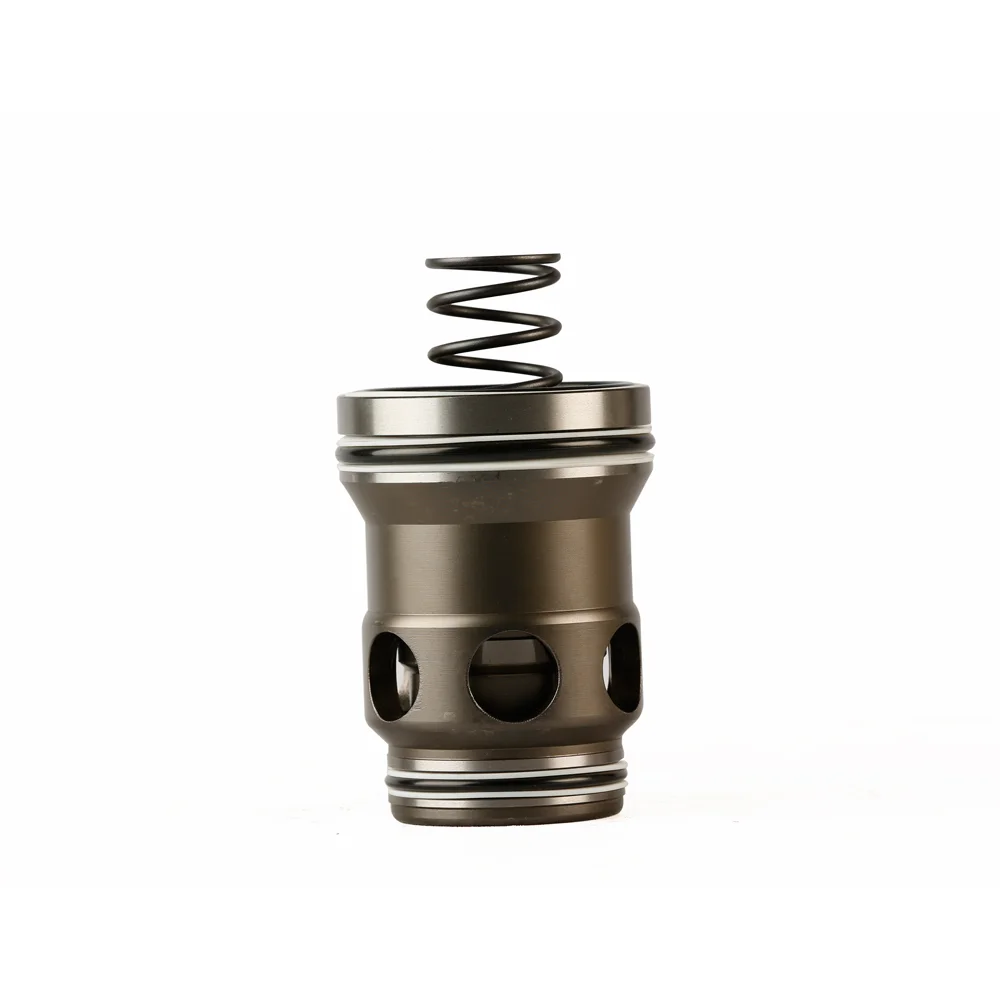

Command massive fluid volumes and extreme system pressures with the HD-LC Series 2-Way Cartridge Valve. Engineered as a high-capacity logic element for complex hydraulic manifolds, this directional control slip-in cartridge easily processes astonishing flow rates up to 3000 L/min while sustaining relentless maximum operating pressures of 420 bar. Highly customizable to meet the precise dynamics of your heavy-duty circuit, the HD-LC Series features multiple spring options, area ratios, and stroke limiters. With a versatile range of control covers designed for direct mounting of pilot directional valves, it is the ultimate foundation for building space-saving, high-performance integrated hydraulic blocks for massive industrial and civil machinery.
Core Technical Specifications:-
- Valve Architecture: 2-Way Cartridge Valve (Logic Element)
- Model Series: HD-LC
- Maximum Operating Pressure: Up to 420 bar
- Maximum Flow Rate: Up to 3000 L/min
- Primary Function: High-Capacity Directional Control
Key Features & Engineering Advantages:-
- Massive Power Capacity: Safely channels up to 3000 liters of hydraulic fluid per minute under extreme 420-bar conditions, virtually eliminating pressure drops and system bottlenecks in massive actuators.
- Customizable Valve Poppets: Available with or without a specialized damping nose on the valve poppet, allowing engineers to dictate exactly how smoothly the valve opens and closes, entirely preventing destructive hydraulic hammering.
- Tuned Opening Dynamics: Features 2 distinct area ratios, 4 different spring strengths, and 2 optional stroke limiters. This unparalleled configurability allows you to precisely calibrate the valve's response time and cracking pressure to match your specific pilot circuit.
- Advanced Control Covers: A highly versatile selection of control covers is available, featuring built-in poppet valves or shuttle valves to seamlessly manage internal pilot signals without external plumbing.
- Direct Pilot Valve Mounting: The control covers are purpose-built to act as mounting pads for standard directional spool valves or directional poppet valves (with or without built-in shuttle valves). This allows you to stack the pilot controls directly on top of the main power cartridge, drastically shrinking your manifold footprint.
Ideal Industry Applications:-
The breathtaking 3000 L/min flow capacity, 420-bar resilience, and logic element versatility make the HD-LC Series the premier choice for:
- Large-Scale Industrial Presses: Providing the massive, instantaneous fluid dumping and filling required by massive metal-forming presses, deep drawing presses, and heavy plastic injection molding machines.
- Heavy Civil & Foundation Machinery: Serving as the primary directional control logic in the massive manifolds of heavy piling rigs, tunnel boring machines, and large-scale dredging equipment.
- Extreme Earthmoving Equipment: Processing the immense hydraulic demands of the primary boom and bucket cylinders on 50+ ton mining excavators and massive wheel loaders.
- Marine & Offshore Hydraulics: Delivering space-saving, high-flow directional control for heavy-duty shipboard winches, offshore cranes, and massive stabilization cylinders.
Why Choose the HD-LC Cartridge Valve?
- Unparalleled Flow Processing: Eliminates energy-wasting bottlenecks in massive fluid power systems.
- Complete Customization: Springs, limiters, and area ratios allow you to perfectly tune the opening dynamics.
- Manifold Optimization: Integrated control covers allow you to build incredibly dense, leak-free custom blocks.
