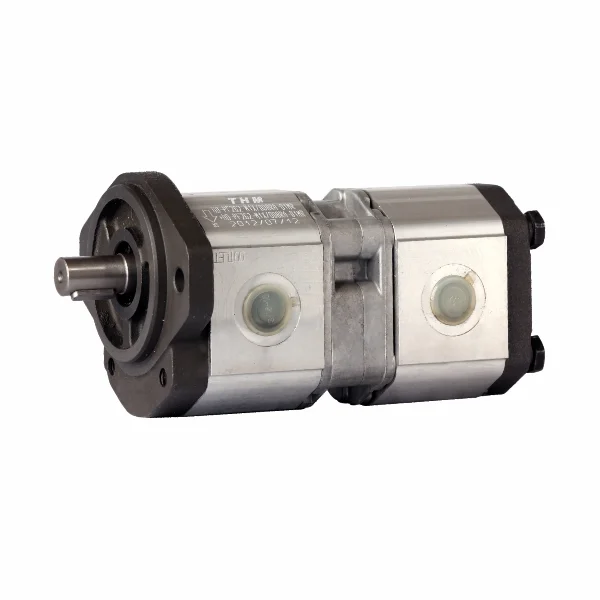

THM – TPF2G2 Series-High Pressure External Gear Pump
Engineered to the highest global standards by THM Huade Hydraulics, the THM TPF2G2 Series High-Pressure External Gear Pump is the ultimate reliable power source for high-performance fluid systems. Delivering an exceptional combination of high power density and compact dimensions, this pump is durably built to offer long-lasting, energy-efficient service in both mobile and stationary equipment. Capable of generating flow rates from 3 to 30 cc/rev and safely sustaining maximum pressures up to 270 bar, the TPF2G2 Series provides the smooth, steady, and highly efficient hydraulic power your construction, agricultural, and manufacturing machinery requires to maximize productivity and lower operational costs.
Core Technical Specifications:-
- Pump Architecture: High-Pressure External Gear Pump
- Model Series: 11 to 19 & 30 to 39
- Displacement Flow Range: 3.0 to 30.0 cc/rev
- Maximum Operating Pressure: 270 bar
- Continuous Operating Pressure: Up to 250 bar
- Operating Temperature Range ("V" Option): -10°C to 120°C
Key Features & Engineering Advantages:-
- Continuous High-Pressure Sealing: Features a unique internal sealing design specifically engineered to safely and reliably operate at a continuous 250 bar without succumbing to fluid leakage or blowout.
- Advanced Hydraulic Gap Compensation: Utilizes a newly developed principle of hydraulic gap compensation that actively maintains extremely tight internal clearances, drastically improving volumetric efficiency and reducing internal fluid slip.
- High-Rigidity Alloy Bushings: Equipped with special alloy bushes utilizing a unique locking design. This ensures the bushings remain perfectly secured, providing maximum structural rigidity under extreme pressure.
- Modified Gear Tooth Profile: The precision-machined, modified gear teeth generate significantly lower operating torque. This creates a remarkably smooth, steady fluid transfer that saves energy and prevents frequent system wear and tear.
- Extreme Temperature Tolerance: The specialized "V" Option is built with premium seals that allow the pump to function flawlessly in harsh environments, handling fluid temperatures from a freezing -10°C up to a scorching 120°C.
- Versatile Global Porting: Comes standard with "G"-BSP ports compliant with ISO228/1. Additional threaded and flanged port configurations are readily available to ensure seamless installation into diverse machinery setups.
- 100% Quality Guaranteed: Every single pump is subjected to rigorous 100% testing on advanced computerized test benches prior to shipping, guaranteeing an exceptionally long service life and immediate reliability in the field.
Ideal Industry Applications:-
The rugged durability and energy-efficient design of the TPF2G2 Series make it a universally adaptable hydraulic drive for:
- Construction Machinery: Heavy-duty excavators, loaders, and mobile earthmoving equipment.
- Agricultural Equipment: High-capacity tractors, harvesters, and forestry machinery.
- Industrial Manufacturing: Stationary hydraulic power units (HPUs), presses, and automated assembly lines.
- Material Handling: High-stress lift systems and commercial conveyance.
