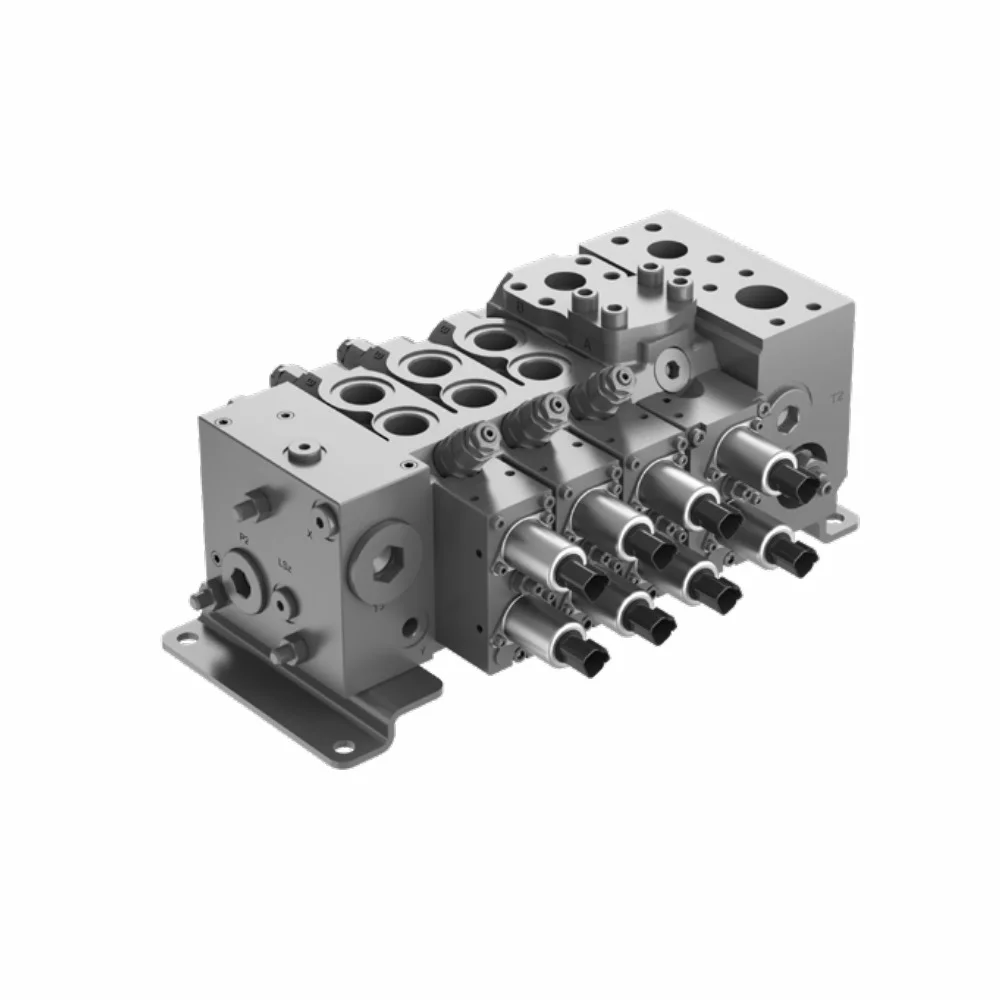

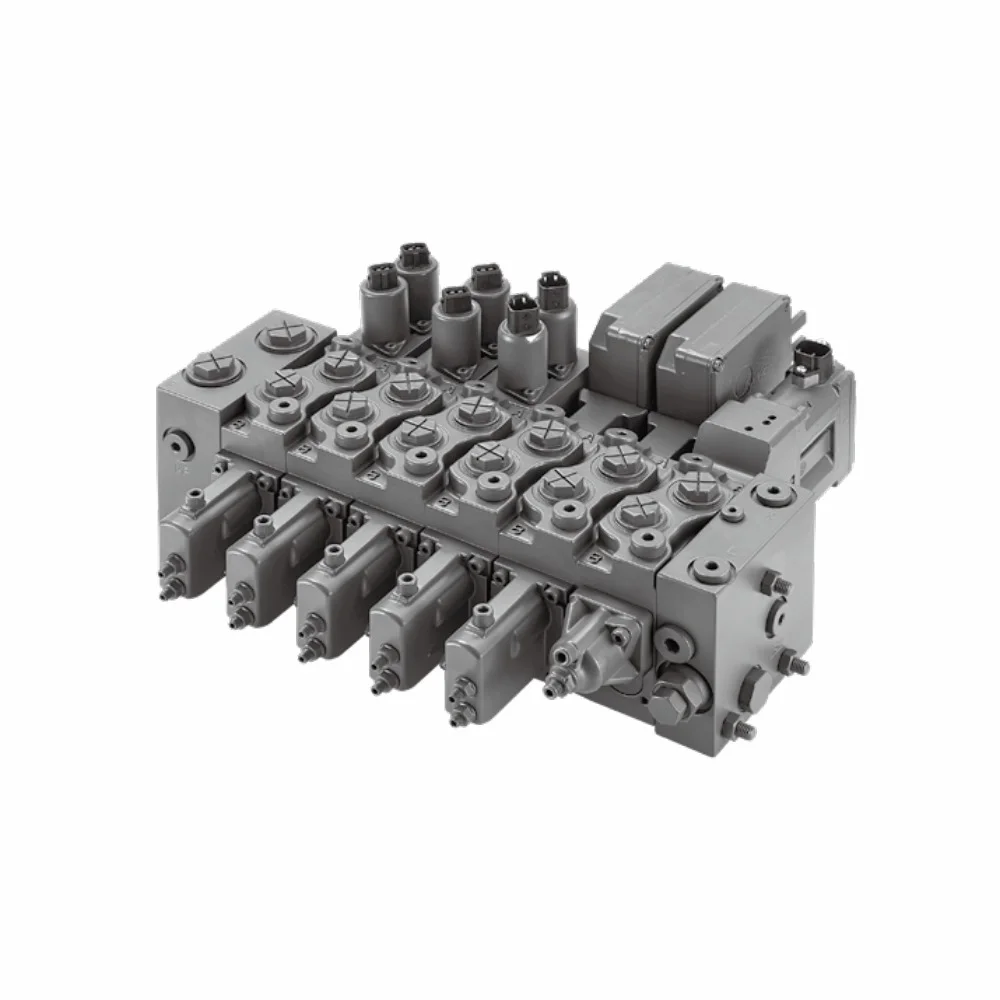

THM – LSPV Series – Proportional Valve
Drive massive energy efficiency and pinpoint actuator accuracy across your heavy-duty mobile and industrial fleets with the THM LSPV Series Load Sensing Proportional Control Valve. Engineered to deliver highly responsive, load-independent flow distribution, this advanced valve automatically regulates fluid output strictly in accordance with real-time load conditions. By completely isolating the actuator speed from fluctuating physical loads, the LSPV Series ensures perfectly smooth, simultaneous multi-function operation. Featuring a highly customizable sandwich plate design, comprehensive pressure relief networks, and lightning-fast response times, it is the ultimate hydraulic control brain for the intense demands of modern civil, road construction, and heavy mobile machinery.
Core Technical Specifications
- Valve Architecture: Load Sensing Proportional Control Valve
- System Compatibility: Closed Center (Variable displacement pumps) / Open Center (Fixed displacement pumps)
- Flow Profile: Load Pressure Compensated
Key Features & Engineering Advantages:-
- Load-Independent Flow Distribution: Advanced load-sensing technology guarantees that the flow rate—and therefore the speed of your hydraulic cylinders or motors—is determined exclusively by the operator's control signal. Actuators will not stall or surge when load resistance suddenly changes.
- Ultimate System Adaptability: Seamlessly integrates into a massive variety of power units. It operates flawlessly as a closed-center system for highly efficient variable pump setups, or as an open-center system for traditional fixed displacement pump architectures.
- Integrated Priority Functions: Ensures that critical safety or steering circuits always receive the exact hydraulic flow they require before secondary functions are supplied, keeping heavy machinery safe and controllable under maximum stress.
- Modular Sandwich Plate Structure: The highly versatile, stackable design allows engineers to build incredibly dense, customized valve banks (ranging from 8 up to 15 middle sections depending on the model size), accommodating virtually any multi-actuator machine profile.
- Comprehensive Pressure Protection: Equipped with primary and secondary pressure relief valves to safeguard the entire manifold. Furthermore, each individual working section features its own dedicated LS (Load Sensing) pressure relief valve, providing highly granular, localized circuit protection.
- Low Hysteresis & Quick Response: Engineered for ultra-smooth operation, eliminating cycle lag and ensuring that the valve reacts instantly and proportionally to a wide array of pilot control methods.
Ideal Industry Applications:-
The rapid response, modularity, and load-independent precision of the LSPV Series make it an essential structural component for heavy civil and road construction machinery, including:
- Heavy Civil Engineering: Providing the exact, multi-function control required for concrete pump trucks, massive stone crushers, and heavy foundation drilling rigs.
- Mobile Material Handling: Ensuring flawlessly smooth, load-independent lifting and telescoping on high-capacity cranes, telehandlers, and aerial work platforms.
- Extreme Earthmoving & Mining: Regulating the massive, simultaneous hydraulic demands of heavy mining trucks operating in punishing outdoor environments.
- Forestry Equipment: Managing the complex, multi-stage harvesting heads and heavy attachments on modern, automated forestry machines.
Why Choose the THM LSPV Series?
- Peak Energy Savings: Automatically adjusts output to match the exact load, entirely eliminating wasted horsepower and significantly reducing fuel consumption.
- Simultaneous Operation: Run multiple heavy actuators at different speeds and pressures at the exact same time without flow starvation.
- Uncompromising Customization: The sandwich plate design and multiple pilot control methods allow you to perfectly tailor the valve to your machine's exact operational requirements.
