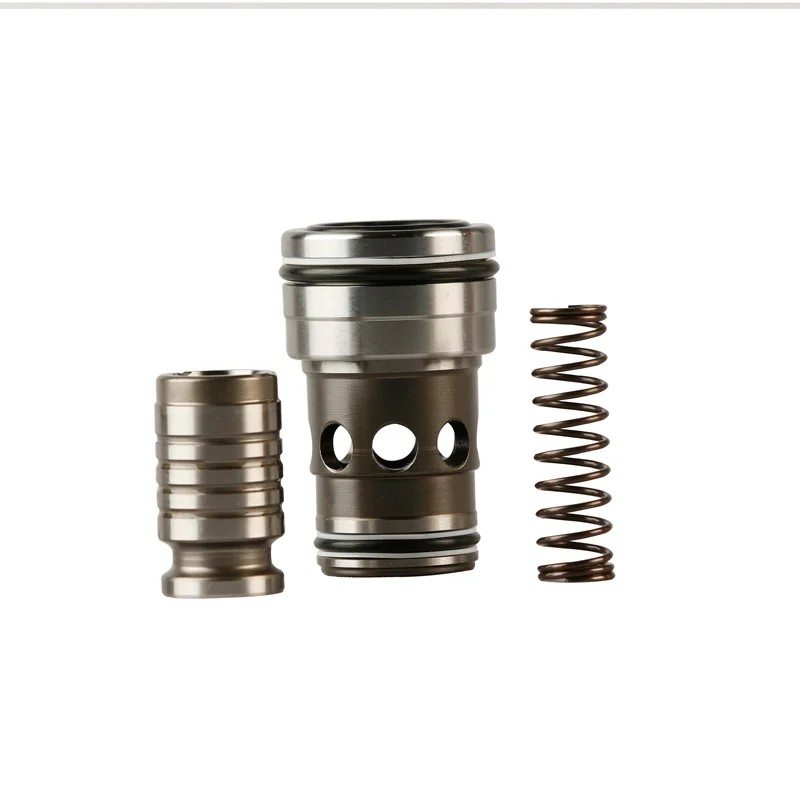

HD – LC/LFA – 2 Way Cartridge Valves Pressure Functions
Master the high-pressure dynamics of your industrial hydraulic systems with the HD LC/LFA Series 2-Way Cartridge Valves. Available through Thm Hydraulics, these high-performance components are specifically designed to manage critical pressure functions in large-scale machinery. Combining the precision-engineered LC Series cartridge valve inserts with the versatile LFA Series control covers, this system offers a modular and highly efficient solution for controlling direction, pressure, and flow. Capable of sustaining extreme pressures up to 400 bar and managing massive flow rates of up to 7000 L/min, the LC/LFA series is the definitive choice for heavy-duty power units and industrial presses.
Core Technical Specifications:-
- Component Architecture: 2-Way Cartridge Valve (Logic Element)
- Cartridge Type: LC Series
- Control Cover Type: LFA Series
- Nominal Sizes (NG): 16, 25, 32, 40, 50, 63, 80, 100
- Maximum Operating Pressure: Up to 400 bar
- Maximum Flow Capacity: Up to 7000 L/min
Key Features & Engineering Advantages:-
- Massive Flow Handling: Engineered for high-power density applications, the largest size in this series can reliably manage flow rates up to 7,000 liters per minute, making it ideal for the most demanding industrial fluid power systems.
- Modular Control Integration: The LFA control covers are designed to house various pilot valves and pressure adjustment mechanisms. This allows for the precise configuration of pressure relief, pressure reduction, and sequencing functions within a compact manifold.
- Fast Response & High Dynamics: The low-mass poppet design of the LC cartridge ensures rapid switching times and high-speed response, which is critical for protecting systems against sudden pressure spikes or for high-cycle industrial processes.
- Leak-Free Pressure Seating: Featuring a precision-ground poppet and seat, these valves provide a virtually leak-free closure, ensuring that system pressure is maintained accurately without energy loss or unintended cylinder drift.
- Compact Manifold Design: By utilizing a "slip-in" cartridge architecture, the LC/LFA series allows for significantly smaller and lighter hydraulic manifolds compared to traditional subplate-mounted valve systems.
Ideal Industry Applications:-
The extreme flow capacity and 400 bar pressure rating make the LC/LFA Cartridge Valves the premier choice for:
- Heavy Industrial Presses: Controlling the massive hydraulic forces required for metal forging, stamping, and high-tonnage compression molding.
- Die-Casting & Plastic Injection: Managing high-speed, high-pressure fluid cycles for large-scale molding machinery.
- Steel & Metallurgical Plants: Serving as the robust pressure control heart for rolling mills and heavy-duty smelting furnace hydraulics.
- Marine & Civil Engineering: Providing reliable pressure regulation for high-capacity winches, large lock gates, and heavy lifting equipment.
Why Choose the HD LC/LFA Series?
- Future-Proof Your System: With a maximum pressure of 400 bar, these valves are built to handle the increasing power demands of modern, high-efficiency hydraulic circuits.
- Simplified Maintenance: The "slip-in" cartridge design allows for the fast inspection or replacement of internal parts without disturbing the main system piping.
- Precision Pressure Management: The synergy between the LC poppet and LFA cover ensures smooth, vibration-free pressure control even at the highest flow velocities.
