The Veljan VT* series represents the pinnacle of fixed displacement pin vane technology, offering a robust solution for diverse hydraulic requirements. Available in single, double, triple, and drive train configurations, these pumps are engineered for longevity through advanced hydraulic pressure compensation and a rigid bearing arrangement. With a high-pressure capability of up to 4650 psi (320 bar) and a maximum speed rating of 3600 rpm, the VT* series delivers an exceptional power-to-weight ratio. Their compact design allows for greater flow within standard frame sizes simply by swapping cam rings, making them an adaptable choice for both industrial and mobile prime movers.

Reliability and Efficiency in Any Environment:-

Designed to thrive in demanding conditions, Veljan Vane Pumps feature a unique double-lip vane design that provides superior resistance to particle contamination and seizure. The pumps excel in cold-start scenarios thanks to dry-lubricant-coated cam rings and a broad viscosity tolerance ranging from 2000 to 10 cSt. With a typical volumetric and mechanical efficiency of 94%, these units significantly reduce heat generation and energy consumption. This high efficiency translates directly into increased productivity, allowing for stable operation even at low speeds under full pressure.

Seamless Maintenance and Customization:-

The VT* series is built for operational flexibility, featuring a modular cartridge design that allows for rapid replacement or displacement changes without major disassembly. Installation is highly customizable, with port configurations offering up to 128 different positions for triple pump setups to fit tight envelopes. Furthermore, these pumps are compatible with a wide array of fluids—including mineral oils and fire-resistant phosphate esters or water glycols—and offer specialized shaft options for direct mounting onto tractors or gearboxes, ensuring they meet the specific needs of any circuit.

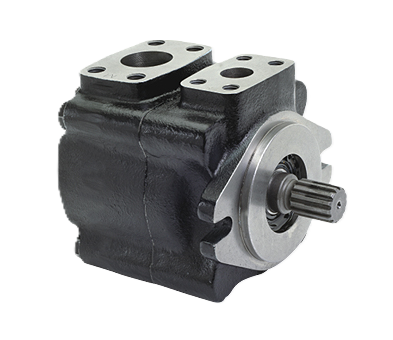

VTXB Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VTXB	3000	210	0.40 - 2.80	6 - 46	2500	SAE - A

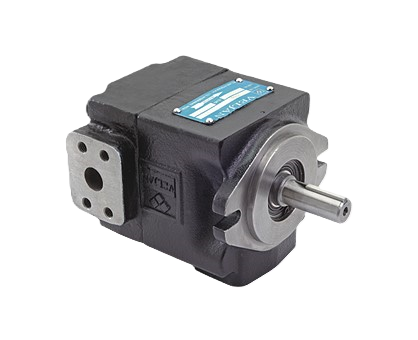

VT6B Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6B	3500	240	0.40 - 2.42	6 - 40	2500	SAE - A

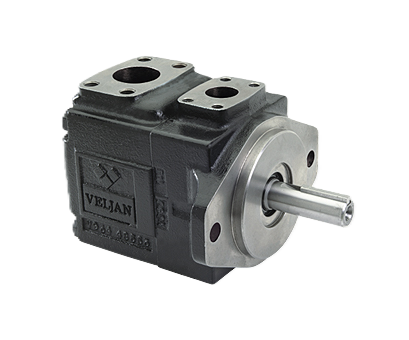

VT6C Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6C	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B

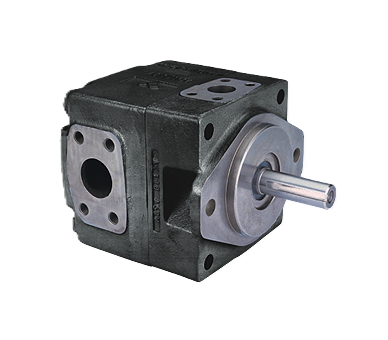

VT6CSH Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6CSH	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B

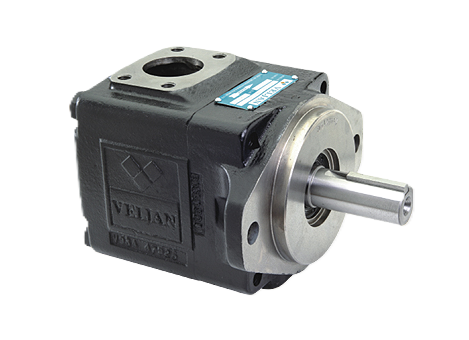

VT6D Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6D	3500	240	2.90 - 11.62	48 - 190	2500	SAE - C

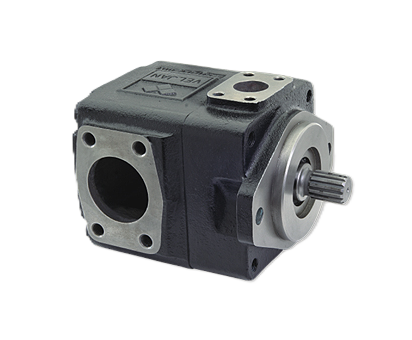

VT6E Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6E	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C

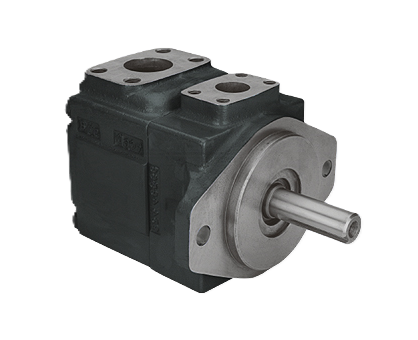

VT6CM Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6CM	4000	275	0.66 - 6.10	11 - 100	2800	SAE - B

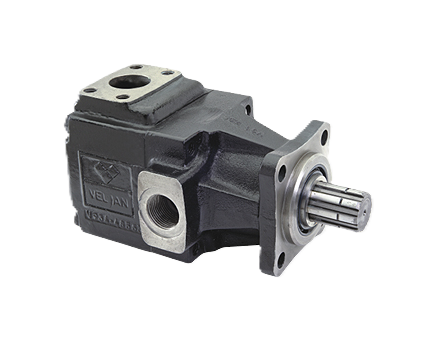

VT6GC Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6GC	4000	275	0.66 - 6.10	11 - 100	2800	R - 17 - 102

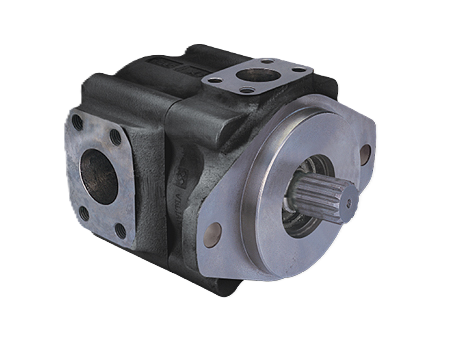

VT6CP Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6CP	4000	275	0.66 - 6.10	11 - 100	2800	SAE - C

VT6DM Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6DM	3500	240	2.90 - 11.62	48 - 190	2500	SAE - C

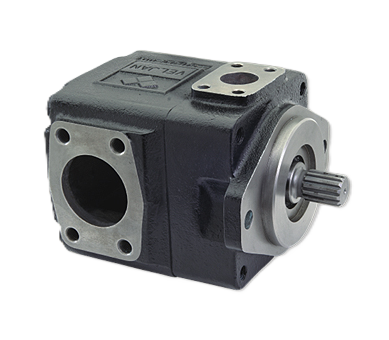

VT6EM Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6EM	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C

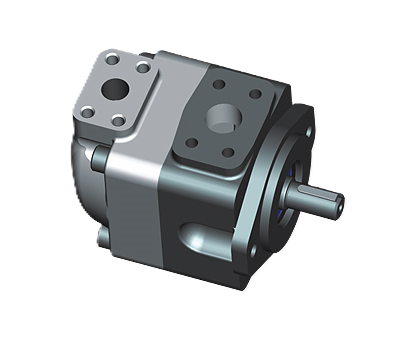

VT7AS Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7AS	4600	320	0.38 - 1.57	6.1 - 25.8	3600	SAE - B

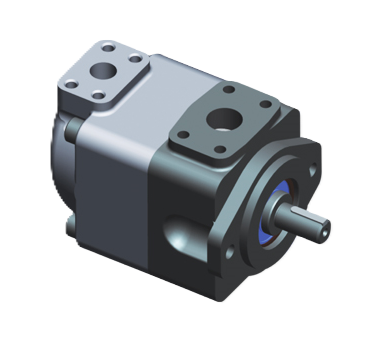

VT7ASW Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7ASW	4600	320	1.71 - 2.42	28 - 39.7	3600	SAE - B

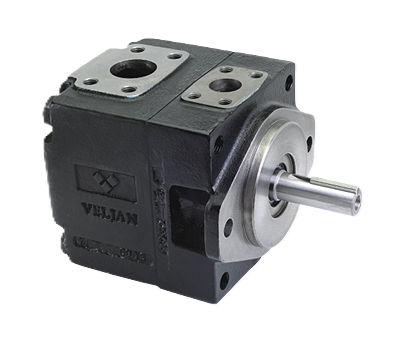

VT7B / BS Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7B / BS	4650	320	0.35 - 3.05	6.0 - 50	3600	SAE - B

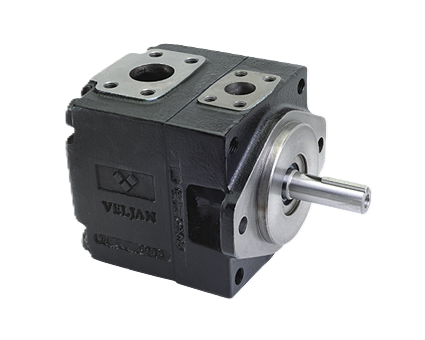

VT7QC1 / QC2 Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7QC1 / QC2	4350	300	0.66 - 6.10	11 - 100	3000	SAE - B

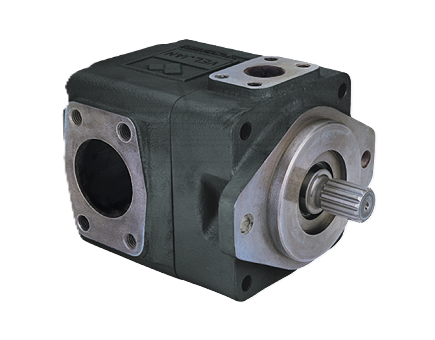

VT7D / DS Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7D / DS	4350	300	2.68 - 9.64	44 - 158	3000	SAE - C

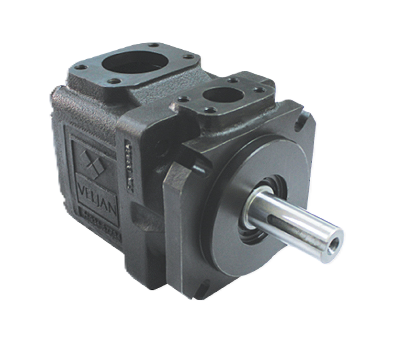

VT7DSW Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT7DSW	4350	300	2.68 - 9.64	44 - 158	3000	SAE - C

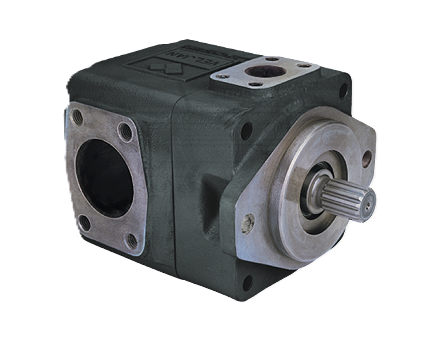

VT7E / ES Vane Pump

Model No.	Max. Pressure		Max. Displacement		Max. Speed (rpm)	Mounting Standard
	psi	bar	in³ / rev	cm³ / rev
VT6E	3500	240	8.07 - 16.40	132 - 270	2200	SAE - C
